Product features:
1. Direct acting three-port two-position valve (normally closed NC).
2. Use positive pressure, negative pressure, and zero differential pressure.
3. Press down the manual button.
4. Maximum response time
NO:6ms、OFF:2ms。
5. Maximum flow rate
90L/min (at 0.7mPa, normally open).

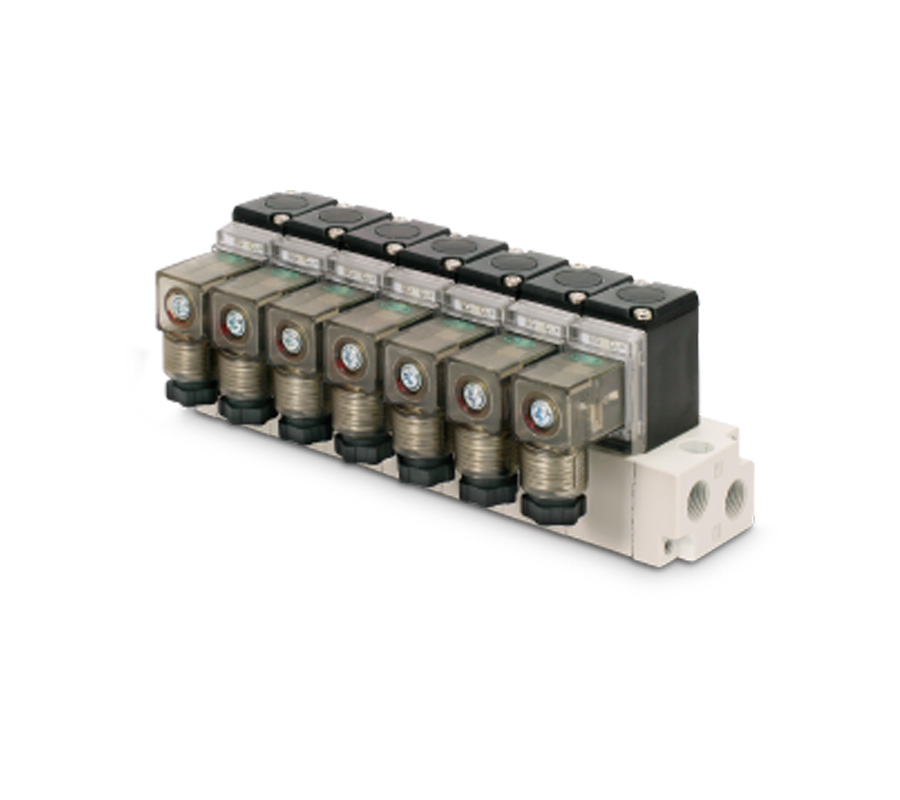

The features of connecting seats are as follows
Unified air intake (exhaust) and simplified piping.
2. The connection seat can be expanded to 8 connections.
Detailed specifications:
|
Model |
SWB500 | Using fluids | air |
| Operating pressure range | -0.1~0.7Mpa | Pipe diameter used | Air inlet/outlet: PT1/8; Exhaust port: PT1/8“ |
| Operating temperature range | 5~60°C | texture of material | Al (body) |
| Connecting diameter | (PT/ PF /NPT) Rc 1/8 | Solenoid valve outlet type | W-type, DIN type |
|
Standard voltage |
24(- 15% ~ 10%)VDC |
Feature advantage: more secureThe product has passed EN ISO 13849-1:2015 (PL=d, CAT 3), EU CE, North America NRTL, Korea KCs, China CR, SEMI S2, cleanliness class 5 certification, and other certificat……
